The BGM-2101 Dual-Drawer Mobile Information Ward Round Vehicle is a lightweight mobile workstation specifically designed for medical ward rounds. It integrates a medical cart, computer terminal, and long-lasting battery system, enabling healthcare professionals to access patient records, enter orders, and document vital signs in real time during rounds—without returning to the nursing station. It is suitable for hospital wards, ICUs, emergency departments, community healthcare centers, and elderly care institutions.

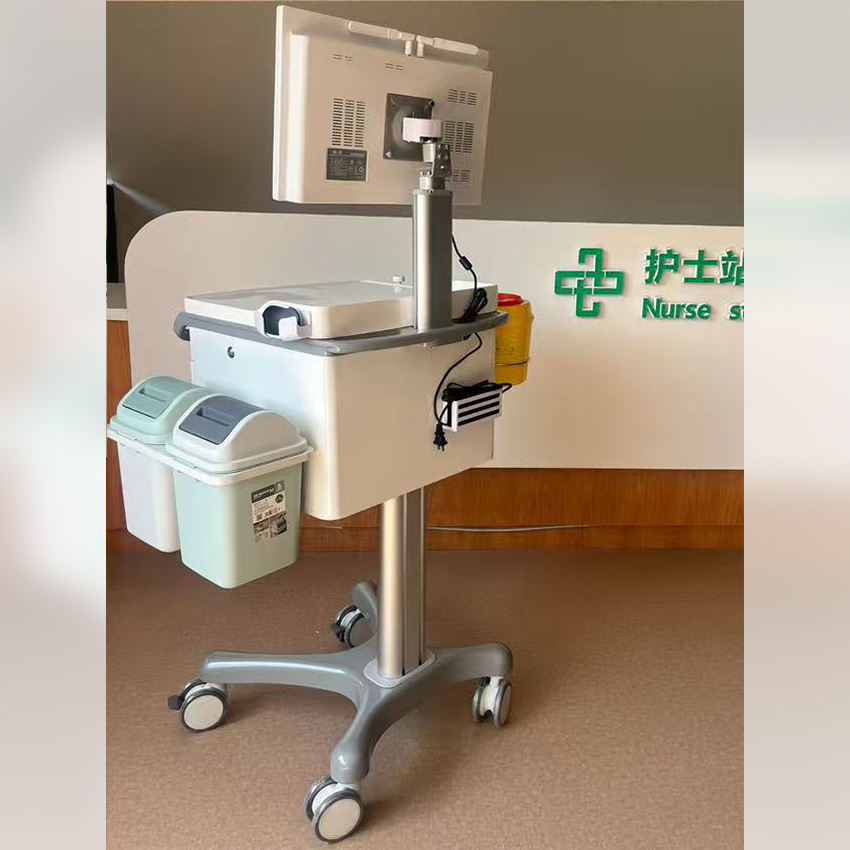

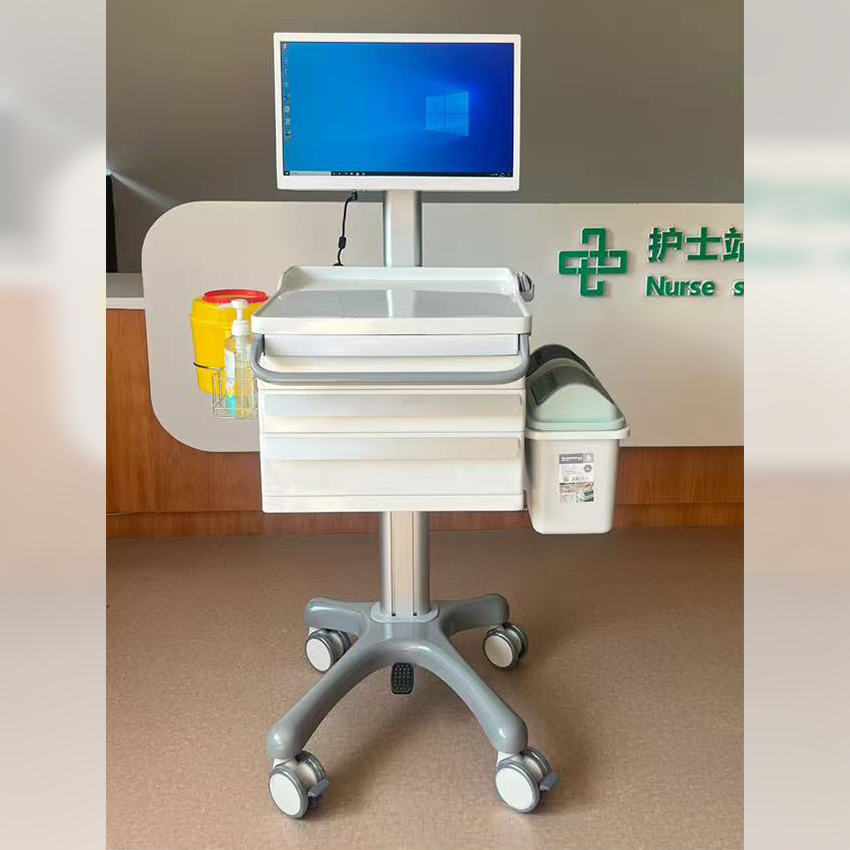

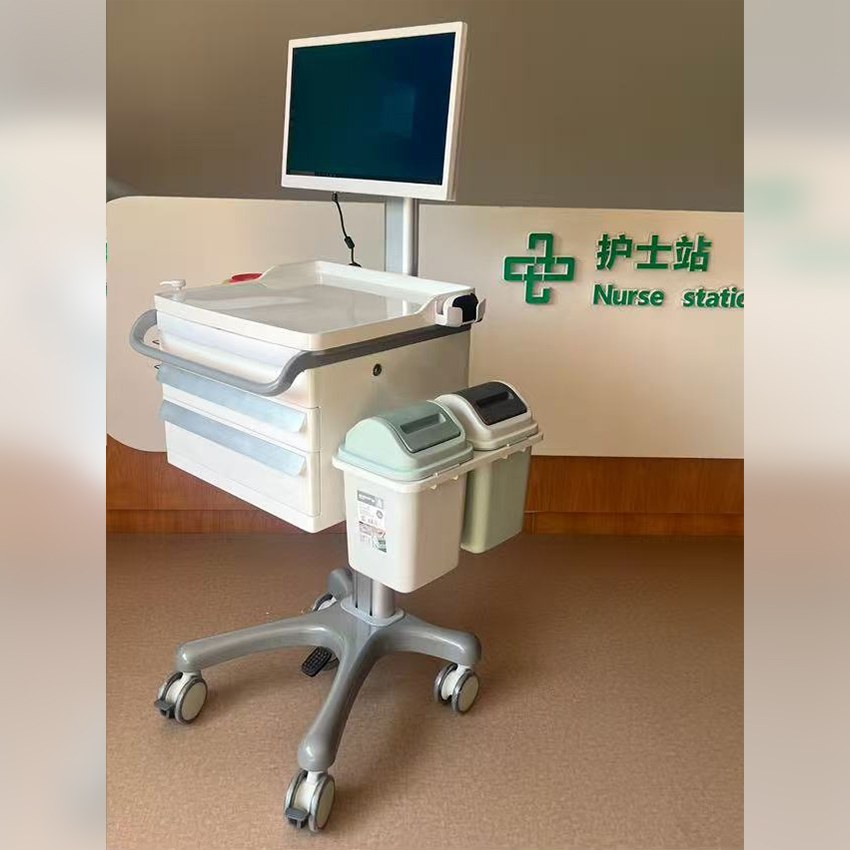

BGM-2101-Dual-drawer Mobile Information Ward Round Vehicle
Trolley Specifications
External Dimensions: Width 530mm × Height 750–980mm (worktop to floor)
Worktop: Width 500mm × Depth 460mm
Total Weight: 35kg (excluding computer)
Worktop Material: Medical-grade stainless steel

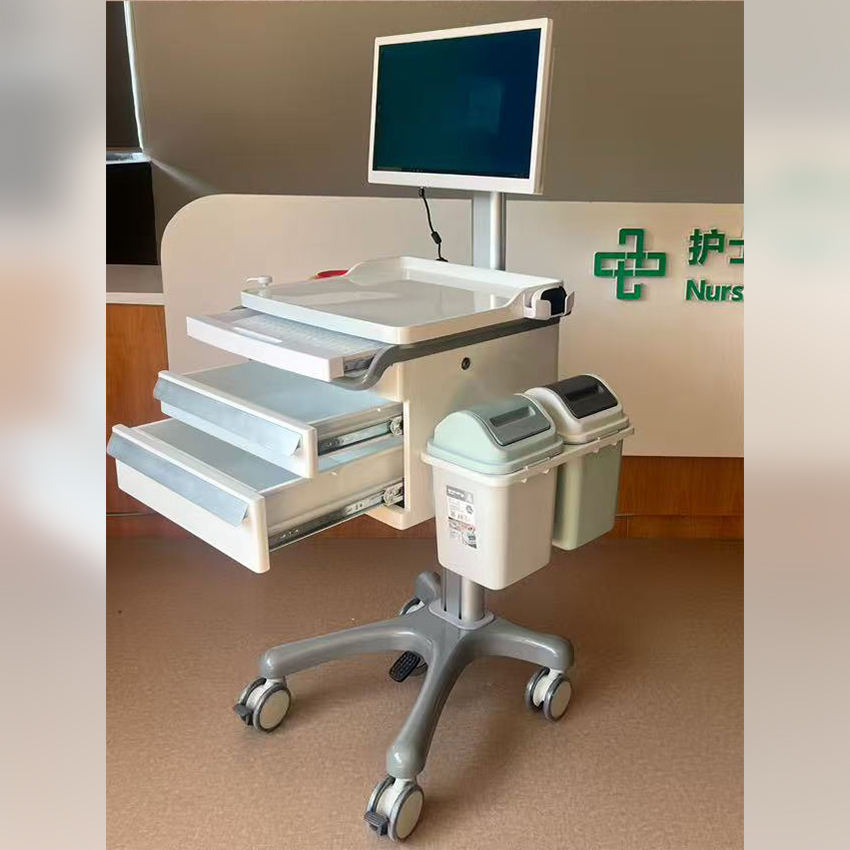

Storage Dimensions: Drawer Clearance Width 400mm × Length 310mm; TWO-tier drawer heights: 100mm, 150mm
Handle: One-piece cast aluminium, front and rear ring-shaped
Column Material: Aluminium alloy profile
Standard Attachments: 4L foot-operated bins x2, sharps container, adapter box
Lifting Range: Displayed travel 130mm
Optional Attachments: Hand sanitiser holder, mouse hanger, miscellaneous basket
Tabletop design: Seamless monobloc construction with 30mm anti-slip edge
Caster design: 4-inch medical-grade silent castors with foot-operated brake
Display mount: 10kg load capacity, 360-degree rotation, infinite tilt angle suspension, compatible with 100x100mm and 75x75mm standard display mounting
Computer Specifications
CPU: Intel Core i5 8th Generation (Optional: 3rd Generation, 12th Generation)
Memory: 8GB DDR4 (Optional: 16GB, 32GB)
Storage: 128GB SSD (Optional: 256GB, 512GB)
Wireless: Intel 8256 Wireless Network Card (Optional: AX210)
Wired: Gigabit RJ45 Ethernet Port
USB Ports: USB 3.0 × 4, USB 2.0 × 2
Display: 21.5-inch widescreen LED soft-glow panel, 1920×1080 resolution (optional 23.8-inch widescreen)
Outputs: Simultaneous HDMI, VGA, and DisplayPort output support
Battery Specifications
Battery Cell: Lithium Iron Phosphate, Hard-Pack
Battery Capacity: 19V 18Ah
Charging Voltage: 21.9V 4A
Charging Time: Less than 5 hours
Operating Duration: Greater than 8 hours
Safety Protection: Overvoltage, overcurrent, overcharge, and overdischarge protection
Battery Performance: Capacity retention exceeding 70% after 3 years
Battery Lifespan: Over 2000 charge-discharge cycles
