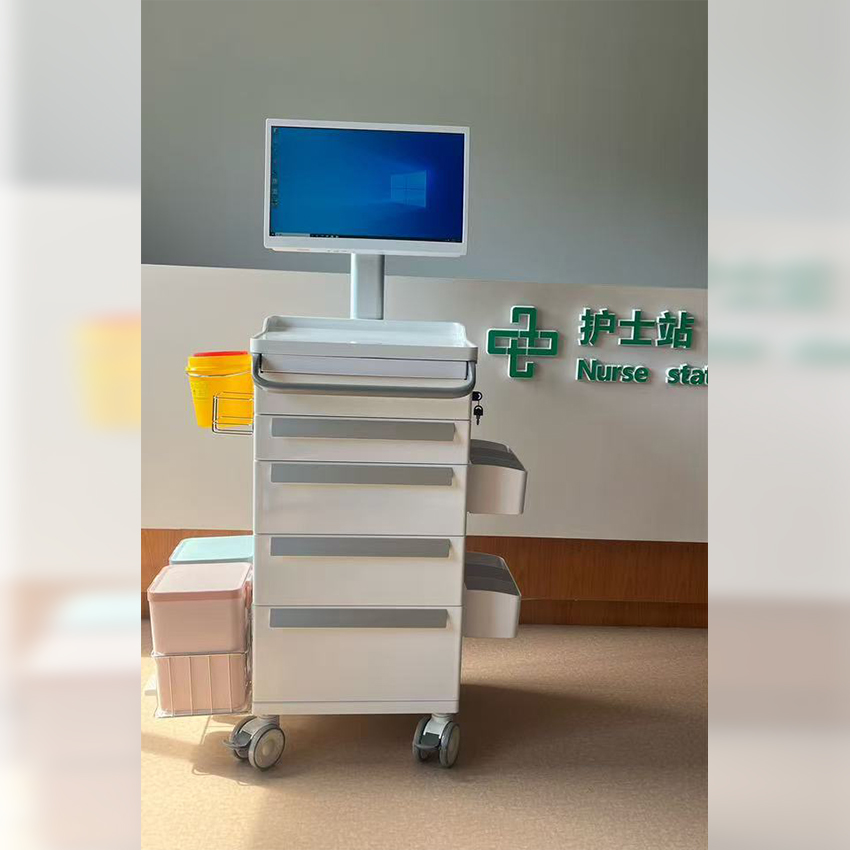

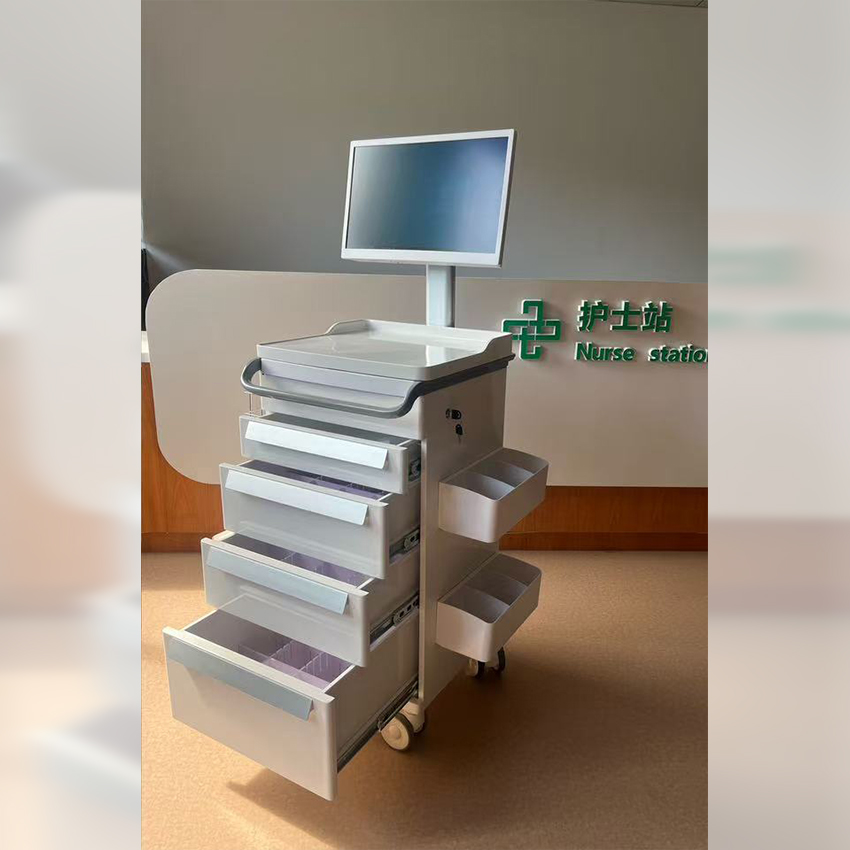

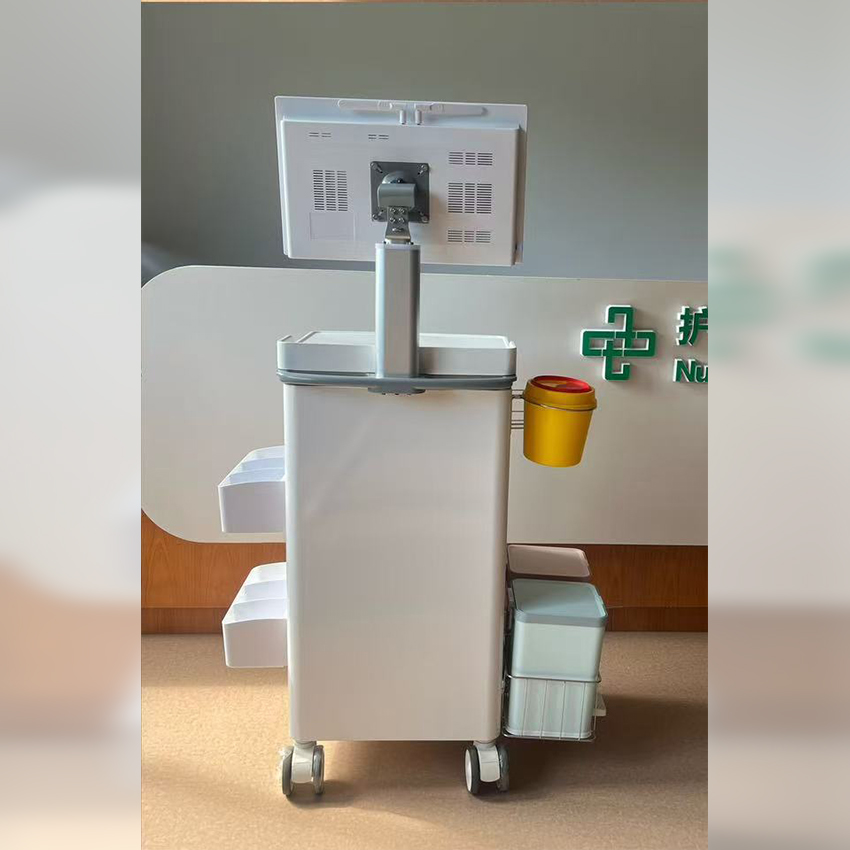

The BGM-2102 Mobile Information Care Vehicle is a high-performance mobile nursing workstation designed for modern smart healthcare environments. It integrates a medical cart, computer terminal, and long-lasting battery system into one seamless solution. Widely used in hospital wards, ICUs, emergency departments, and health examination centers, it enables healthcare professionals to perform bedside order entry, electronic medical record (EMR) documentation, and real-time nursing record synchronization.
Trolley Specifications
External Dimensions: Width 530mm × Height 750–980mm (worktop to floor)
Worktop: Width 500mm × Depth 460mm
Total Weight: 45kg (excluding computer)
Worktop Material: Medical-grade stainless steel
Storage Dimensions: Drawer Clearance Width 400mm × Length 375mm; Four-tier drawer heights: 100, 165, 225mm
Handle: One-piece cast aluminium, front and rear ring-shaped
Column Material: Aluminium alloy profile
Standard Attachments: 6.5L foot-operated waste bins x2, sharps container, compartmentalised storage boxes x2
Lifting Range: Displayed lifting travel 130mm
Optional Attachments: Hand sanitiser holder, mouse hanger, miscellaneous storage basket
Tabletop design: Seamless monobloc construction with 30mm anti-slip barrier
Caster design: 4-inch medical-grade silent castors with foot-operated brake
Display mount: 10kg load capacity, 360-degree rotation, infinite tilt angle suspension, compatible with 100x100mm and 75x75mm standard display mounting
Computer Specifications
CPU: Intel Core i5 8th Generation (Optional: 3rd Generation, 12th Generation)
Memory: 8GB DDR4 (Optional: 16GB, 32GB)
Storage: 128GB SSD (Optional: 256GB, 512GB)
Wireless: Intel 8256 Wireless Network Card (Optional: AX210)
Wired: Gigabit RJ45 Ethernet Port
USB Ports: USB 3.0 × 4, USB 2.0 × 2
Display: 21.5-inch widescreen LED soft-glow panel, 1920×1080 resolution (optional 23.8-inch widescreen)
Outputs: Simultaneous HDMI, VGA, and DisplayPort output support
Battery Specifications
Battery Cell: Lithium Iron Phosphate, Hard Pack
Battery Capacity: 19V 18Ah
Charging Voltage: 21.9V 4A
Charging Time: Less than 5 hours
Operating Duration: Greater than 8 hours
Safety Protection: Overvoltage, Overcurrent, Overcharge, Over-discharge protection
Battery Performance: Capacity retention greater than 70% after 3 years
Battery Lifespan: Over 2000 charge/discharge cycles
