Product Overview The HWo1L Ultrasonic Height and Weight Scale is a highly cost-effedtivedevice for measuring height and weight.Constructed with high-strengthaluminum alloy material,it features lightweight portability. The adjust-able-angle display design accommodates various body heights,ensuring con-venient data viewing for all users. The foldable design reduces the height toMwapproximately 1.2 meters, facilitating easy relocation.Additionally,the deviceadopts a minimalist design with sleek aesthetics.Eq

Image Gallery

Product Introduction

Product Overview
The HWo1L Ultrasonic Height and Weight Scale is a highly cost-effedtivedevice for measuring height and weight.Constructed with high-strengthaluminum alloy material,it features lightweight portability. The adjust-able-angle display design accommodates various body heights,ensuring con-venient data viewing for all users. The foldable design reduces the height toMwapproximately 1.2 meters, facilitating easy relocation.Additionally,the deviceadopts a minimalist design with sleek aesthetics.Equipped with high-pred-wMsion height measurement probes and industrial-grade weight sensors,itdelivers exceptional measurement accuracy and is widely applicable in yari-ous settings such as hospitals,hotels, fitness and beauty centers,pharmacies,and shopping malls.
Product Features
1, Fully automated measurement:instant measurement upon arrival,equipped with voice-guided prompts, featuring high degree of automation;2, Portable and foldable: The device is foldable,with a folded height ofwapproximately 1.2 meters, facilitating mobility3, Intelligent body type assessment:Automatically calculates the intema-tionally recognized Body Mass Index(BMI),covering five body type dlassifica-tions including underweight,lean,nommal,overweight,and obese,with intel-wligent and accurate judgment.4, Adjustable screen viewing angle:Features built-in screen rotation tocustomize display angle for different heights,ensuring easy access to screendata
5 Data printing function:The device is equipped with a built-in microprinterfor printing test data

Specifications

Product Specifications

Item Specifications
Product Name/Model Height and Weight Scale / HW01L
Screen Size 4-inch high-brightness digital display screen
Height Measurement Range 50–200 cm, division value: 0.1 cm
Weight Measurement Range 5–500 kg, resolution: 0.1 kg
BMI (Body Mass Index) BMI can be analyzed based on body weight and height data

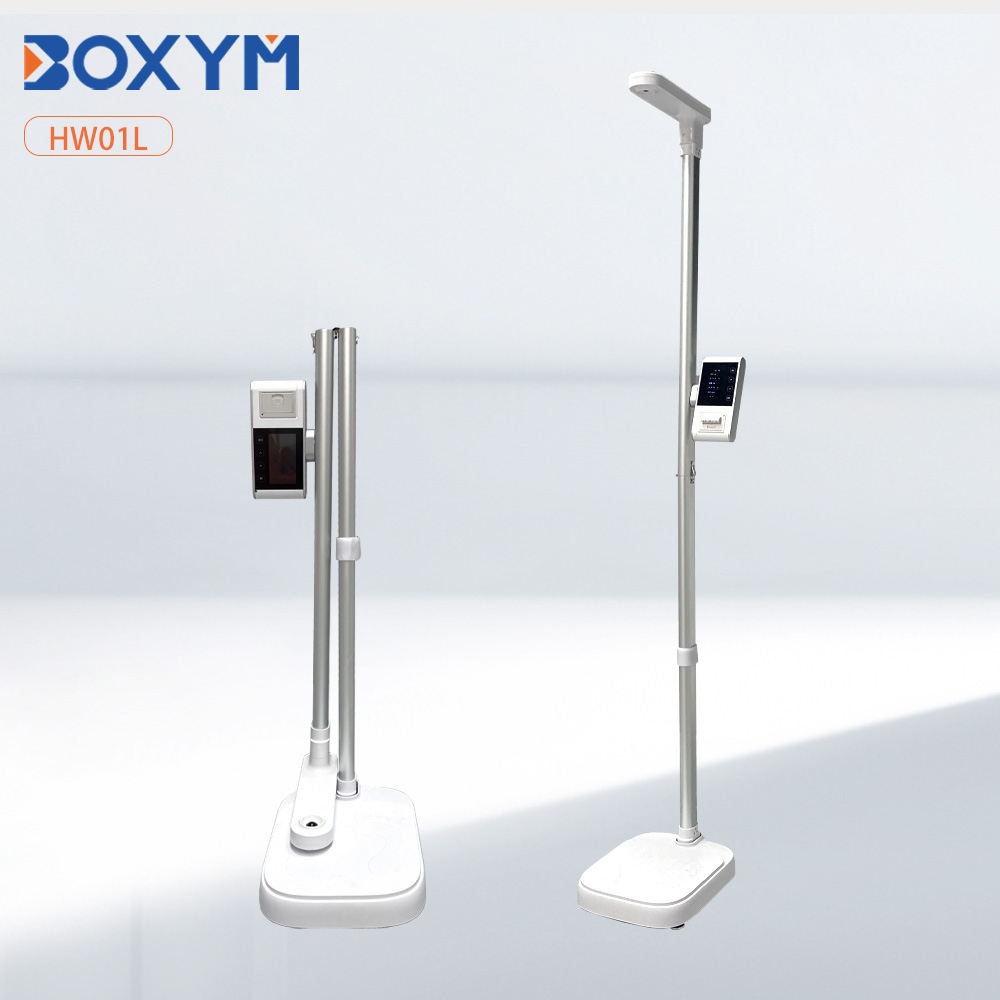

Foldable & Portable Folded height: 1.2m, easy for transportation and storage
Weight Measurement Method Precision resistance strain gauge sensor
Height Measurement Method High-precision millimeter wave sensor
Measurement Speed 360 measurements per hour
Printer Built-in micro thermal printer, supports automatic or manual printing of test reports
Voice Prompt Voice announcement for operation guidance and result reading; can be manually turned off
System Compatibility & Data Communication RS232 data interface, Bluetooth; communication protocols can be customized
Power Supply AC100V–240V (50Hz/60Hz)
Power Consumption ≤10W, approx. 100 hours per 1 kWh
Working Environment Temperature: -10℃ ~ +40℃
Dimensions (L×W×H) 500×350×2200 mm; folded height: 1200 mm
Device Weight Net weight: approx. 9kg; with packaging: approx. 12kg
Application Scenarios Hospitals, township clinics, community health stations, schools, physical examination centers, military, beauty & fitness clubs, shopping malls, pharmacies, pedestrian streets, etc.
