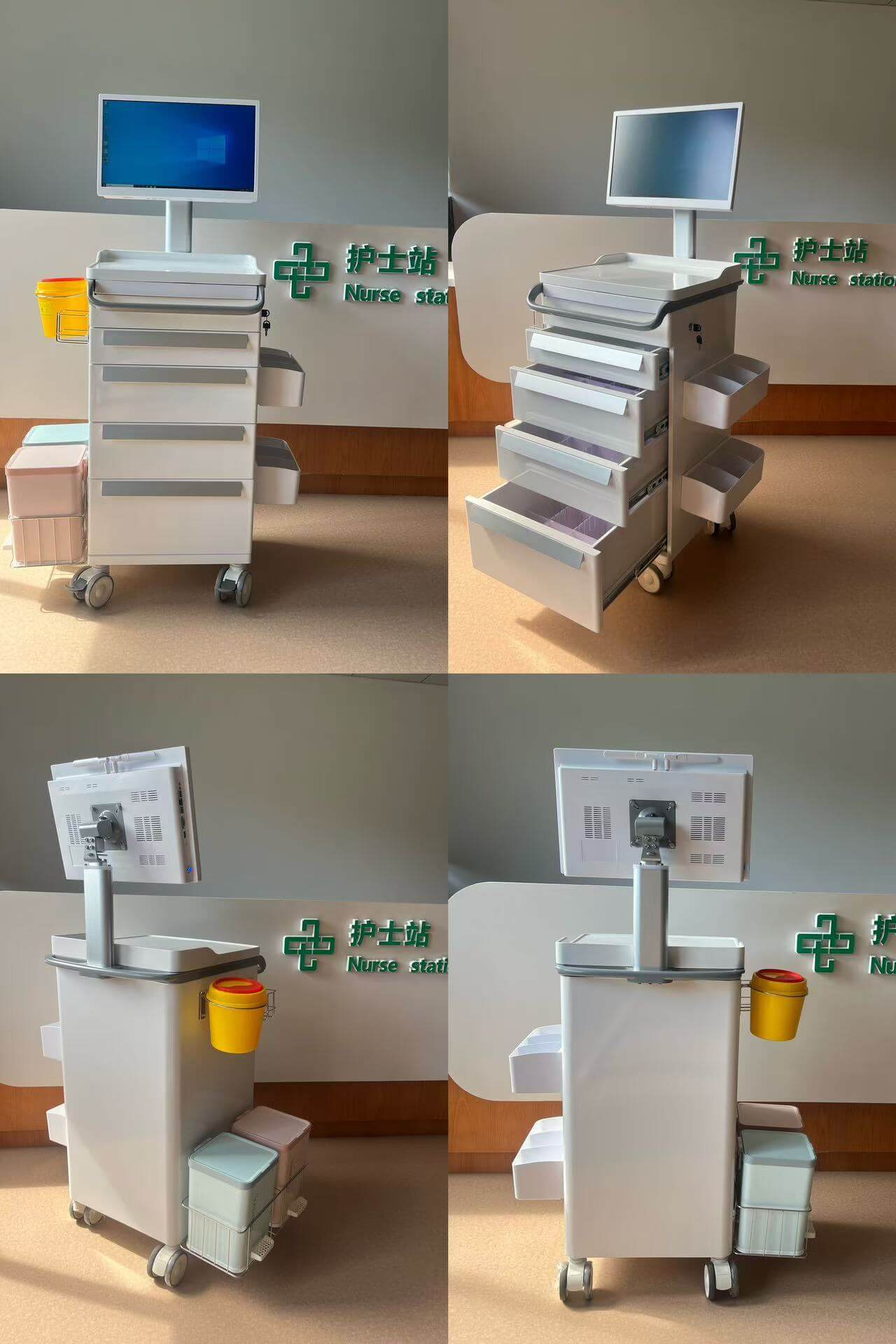

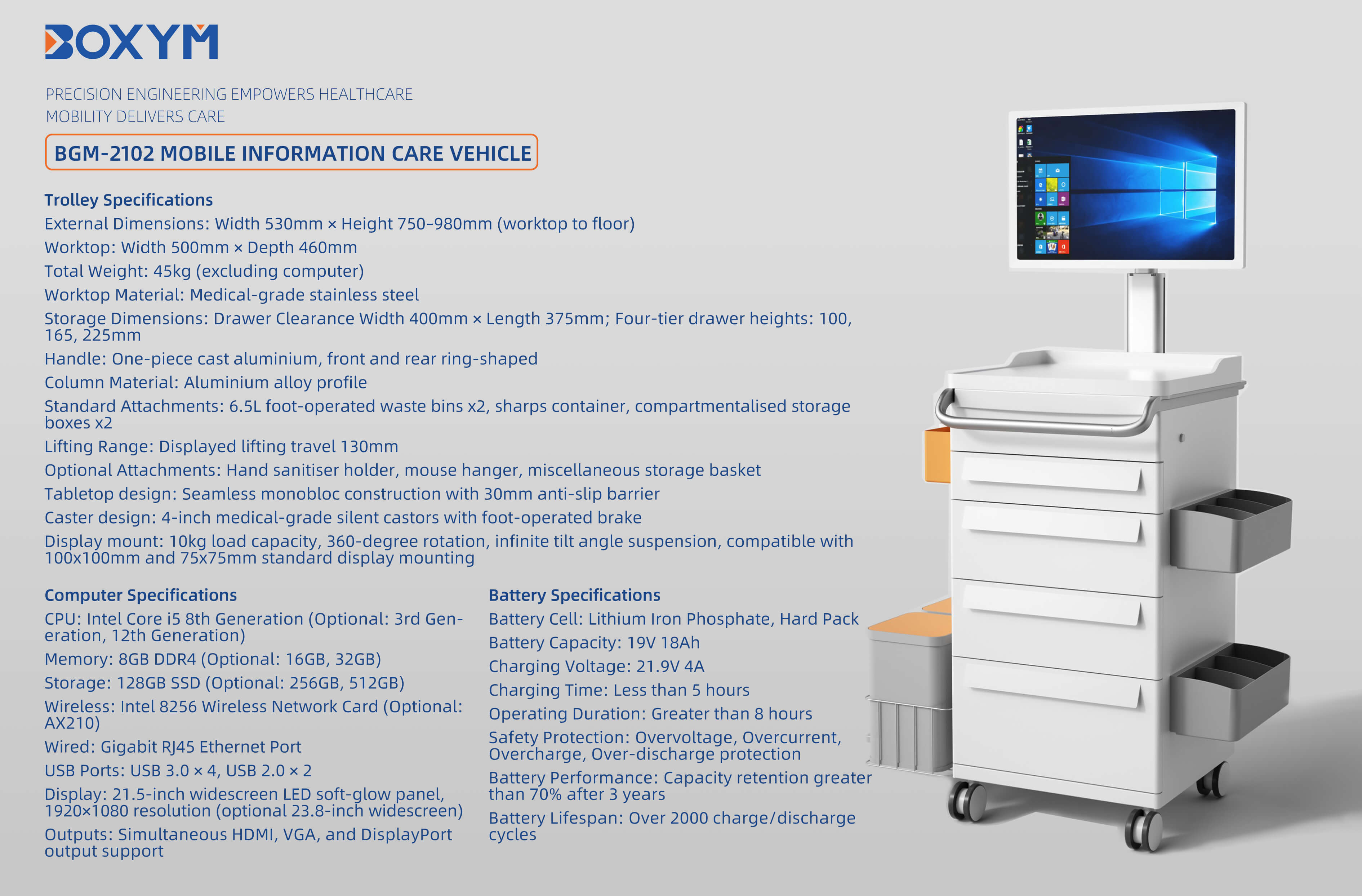

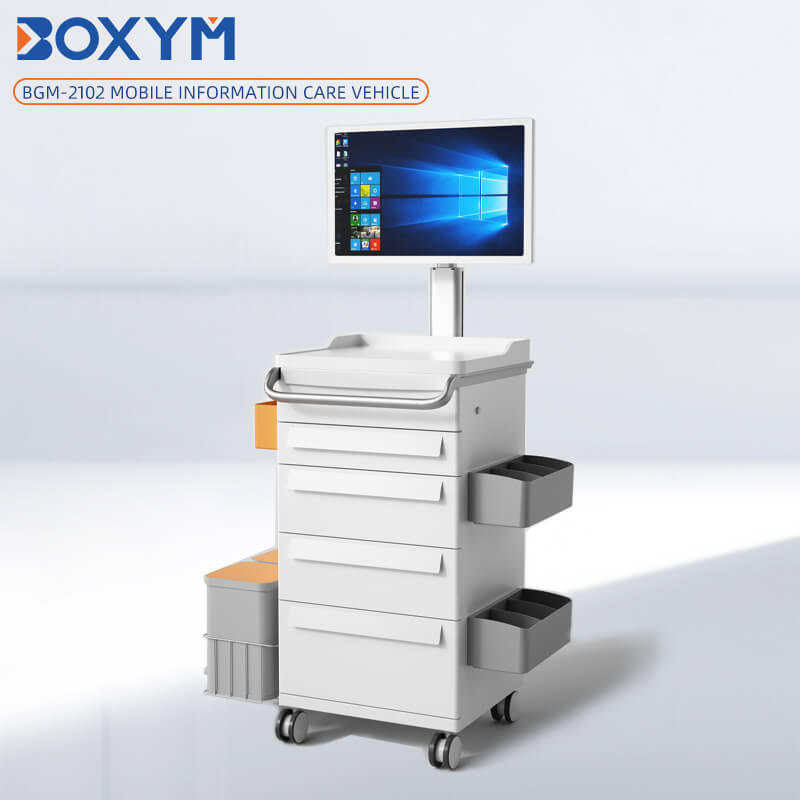

BGM-2102 MOBILE INFORMATION CARE VEHICLE
Trolley Specifications
External Dimensions: Width 530mm × Height 750–980mm (worktop to floor)
Worktop: Width 500mm × Depth 460mm
Total Weight: 45kg (excluding computer)
Worktop Material: Medical-grade stainless steel
Storage Dimensions: Drawer Clearance Width 400mm × Length 375mm; Four-tier drawer heights: 100, 165, 225mm
Handle: One-piece cast aluminium, front and rear ring-shaped
Column Material: Aluminium alloy profile
Standard Attachments: 6.5L foot-operated waste bins x2, sharps container, compartmentalised storage boxes x2
Lifting Range: Displayed lifting travel 130mm
Optional Attachments: Hand sanitiser holder, mouse hanger, miscellaneous storage basket
Tabletop design: Seamless monobloc construction with 30mm anti-slip barrier
Caster design: 4-inch medical-grade silent castors with foot-operated brake
Display mount: 10kg load capacity, 360-degree rotation, infinite tilt angle suspension, compatible with 100x100mm and 75x75mm standard display mounting

Computer Specifications
CPU: Intel Core i5 8th Generation (Optional: 3rd Generation, 12th Generation)
Memory: 8GB DDR4 (Optional: 16GB, 32GB)
Storage: 128GB SSD (Optional: 256GB, 512GB)
Wireless: Intel 8256 Wireless Network Card (Optional: AX210)
Wired: Gigabit RJ45 Ethernet Port
USB Ports: USB 3.0 × 4, USB 2.0 × 2
Display: 21.5-inch widescreen LED soft-glow panel, 1920×1080 resolution (optional 23.8-inch widescreen)
Outputs: Simultaneous HDMI, VGA, and DisplayPort output support

Battery Specifications
Battery Cell: Lithium Iron Phosphate, Hard Pack
Battery Capacity: 19V 18Ah
Charging Voltage: 21.9V 4A
Charging Time: Less than 5 hours
Operating Duration: Greater than 8 hours
Safety Protection: Overvoltage, Overcurrent, Overcharge, Over-discharge protection
Battery Performance: Capacity retention greater than 70% after 3 years
Battery Lifespan: Over 2000 charge/discharge cycles
