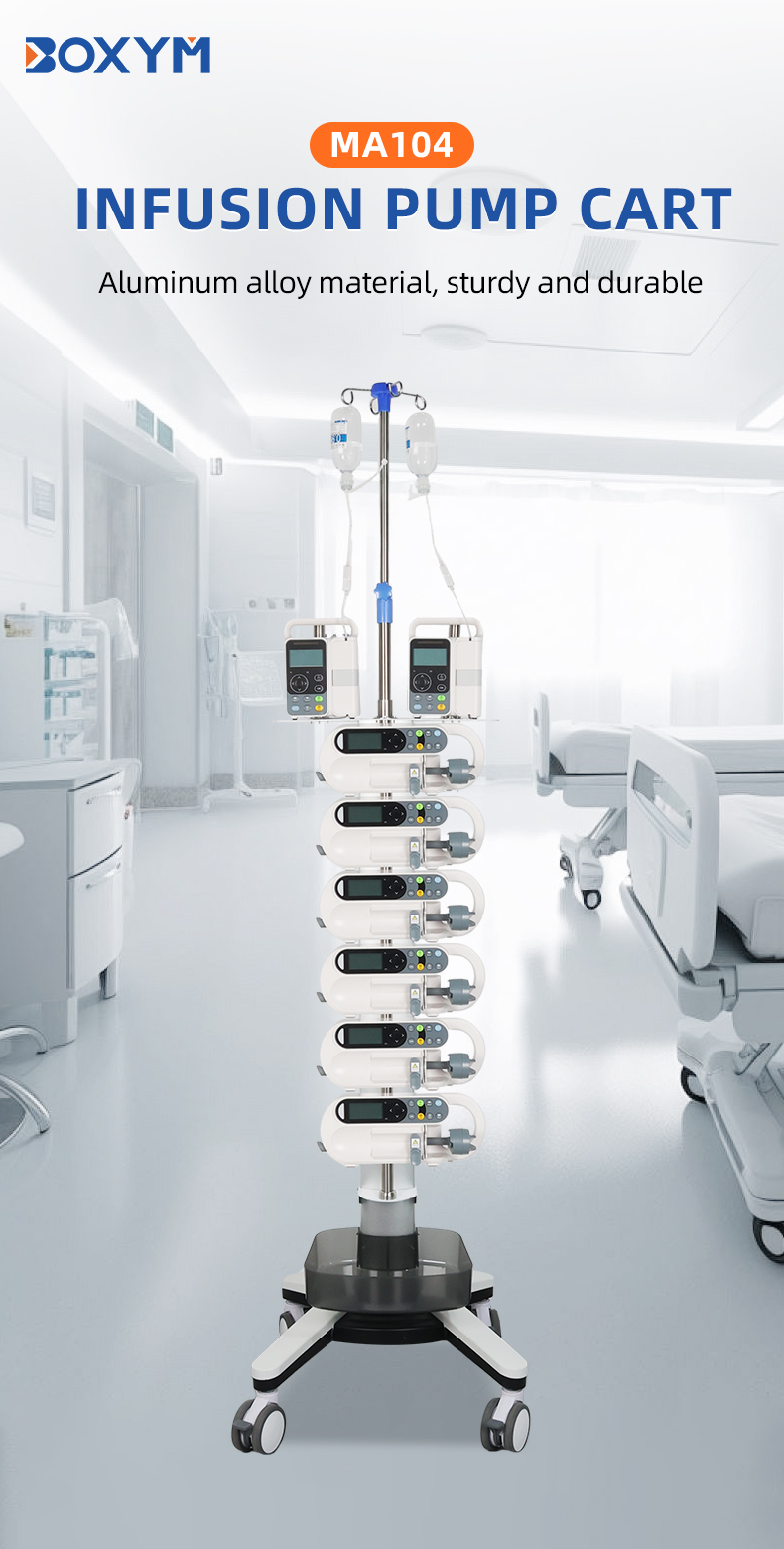

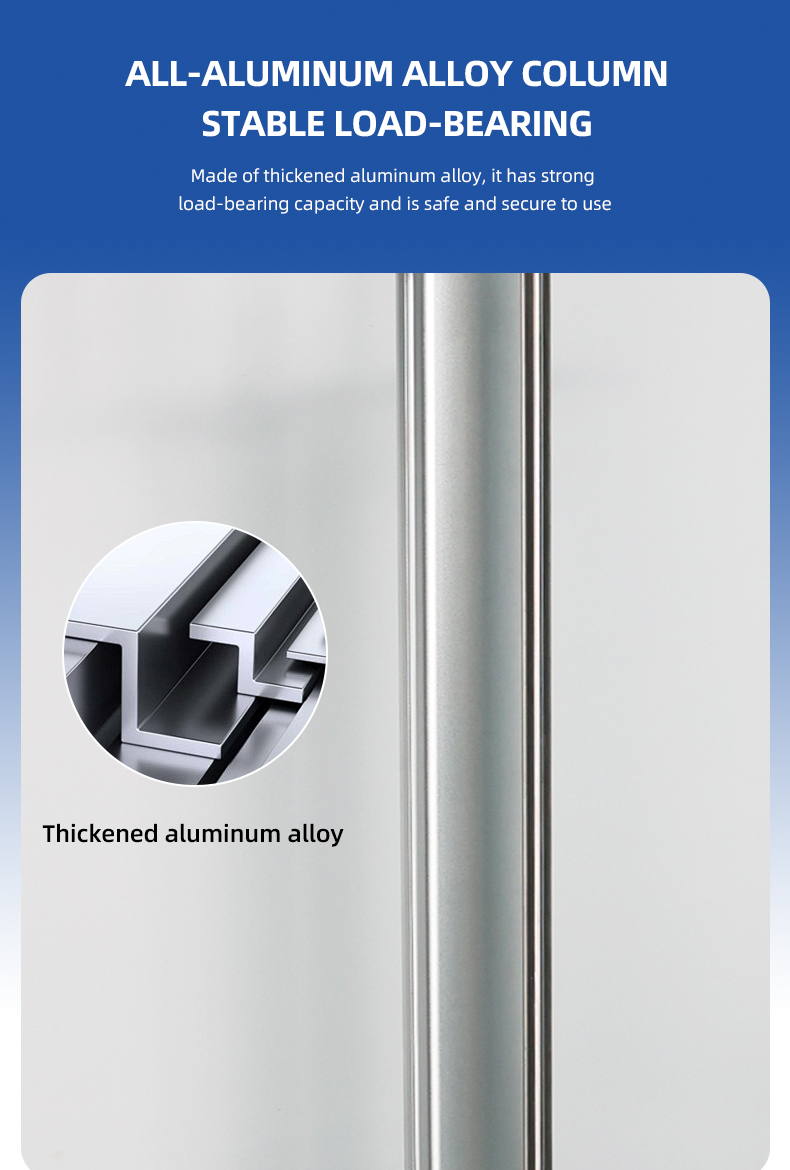

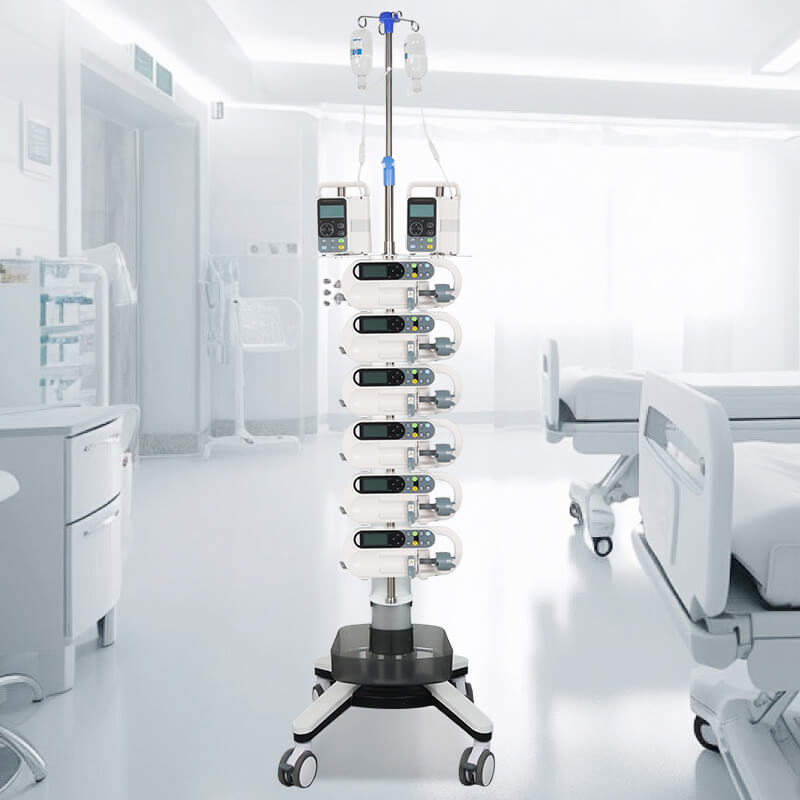

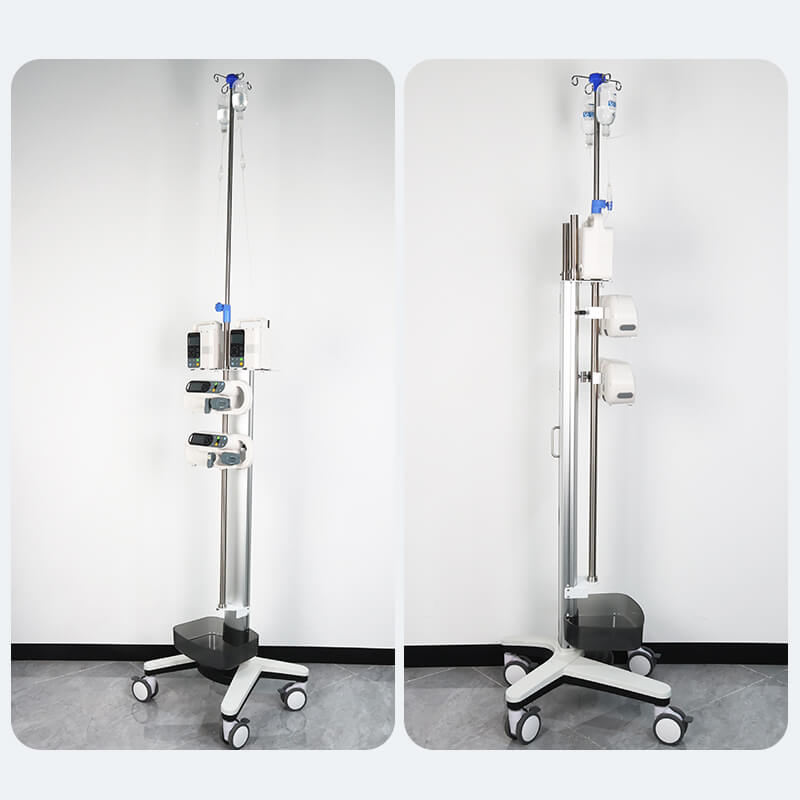

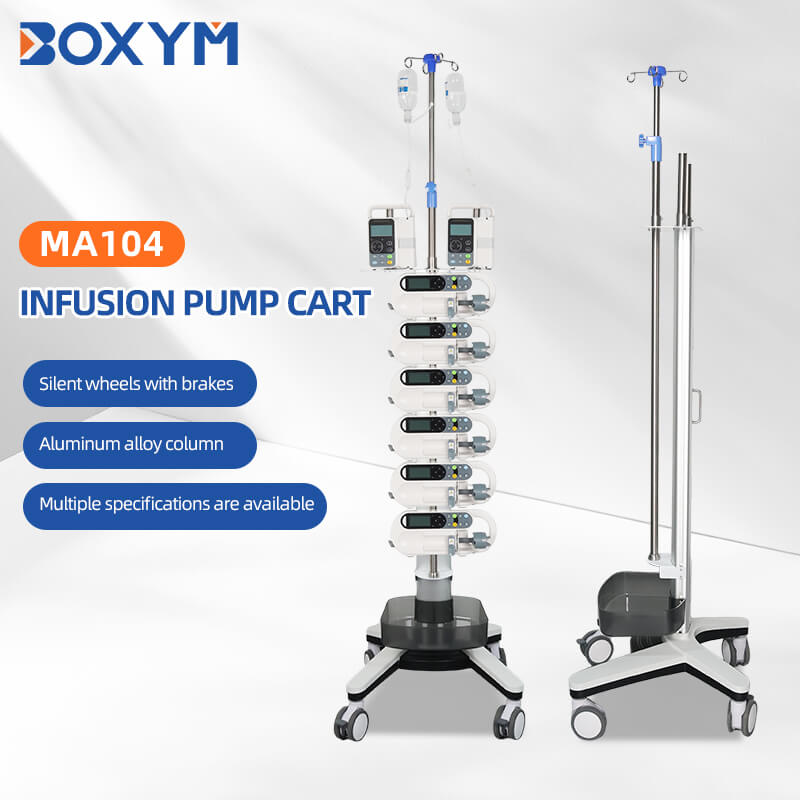

MA104 Infusion Pump / Syringe Pump Trolley is a medical mobile workstation specifically designed for multi-pump infusion and injection therapy, suitable for various settings such as outpatient clinics, community care, home care, beauty institutions, and veterinary clinics. The trolley features an all-aluminum column structure and a large base stable frame, offering strong overall load-bearing capacity with a maximum pole load of 18 kg, ensuring safe and stable equipment operation.

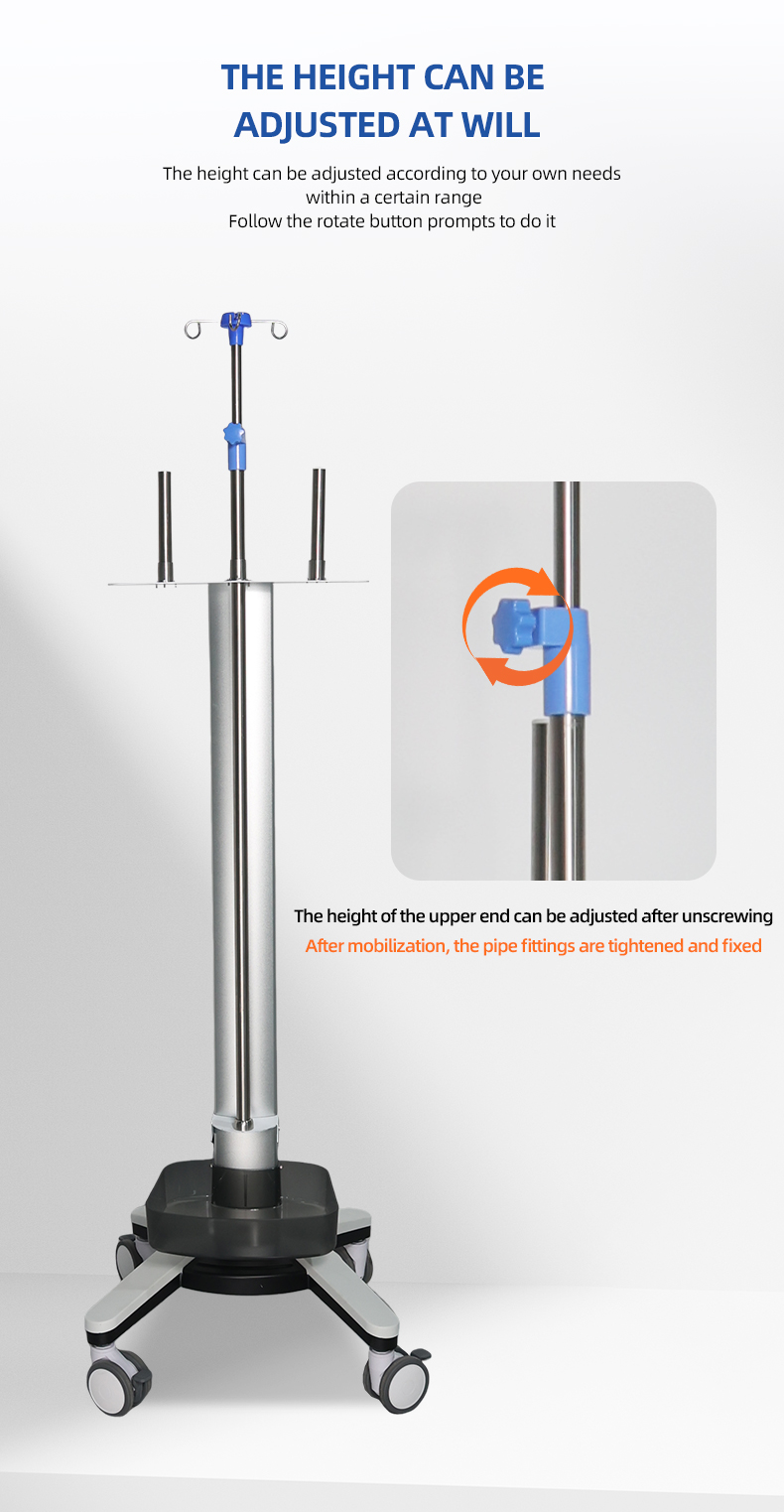

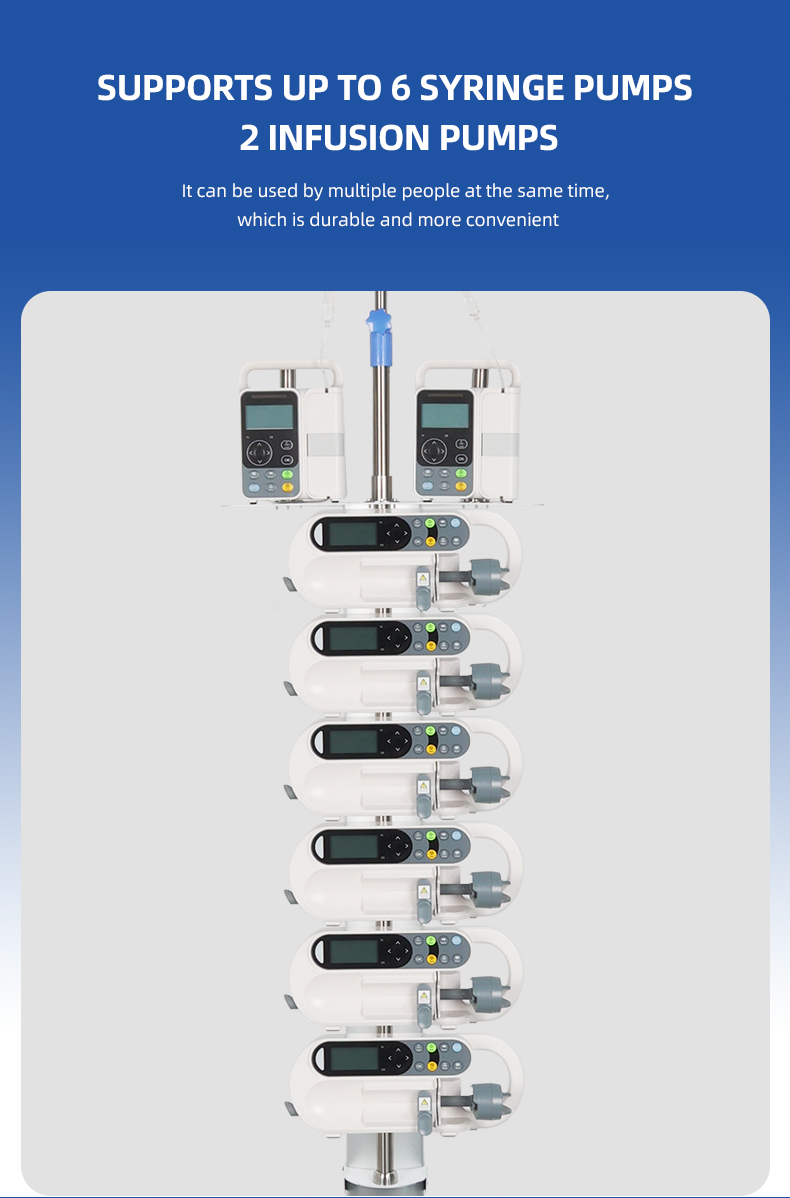

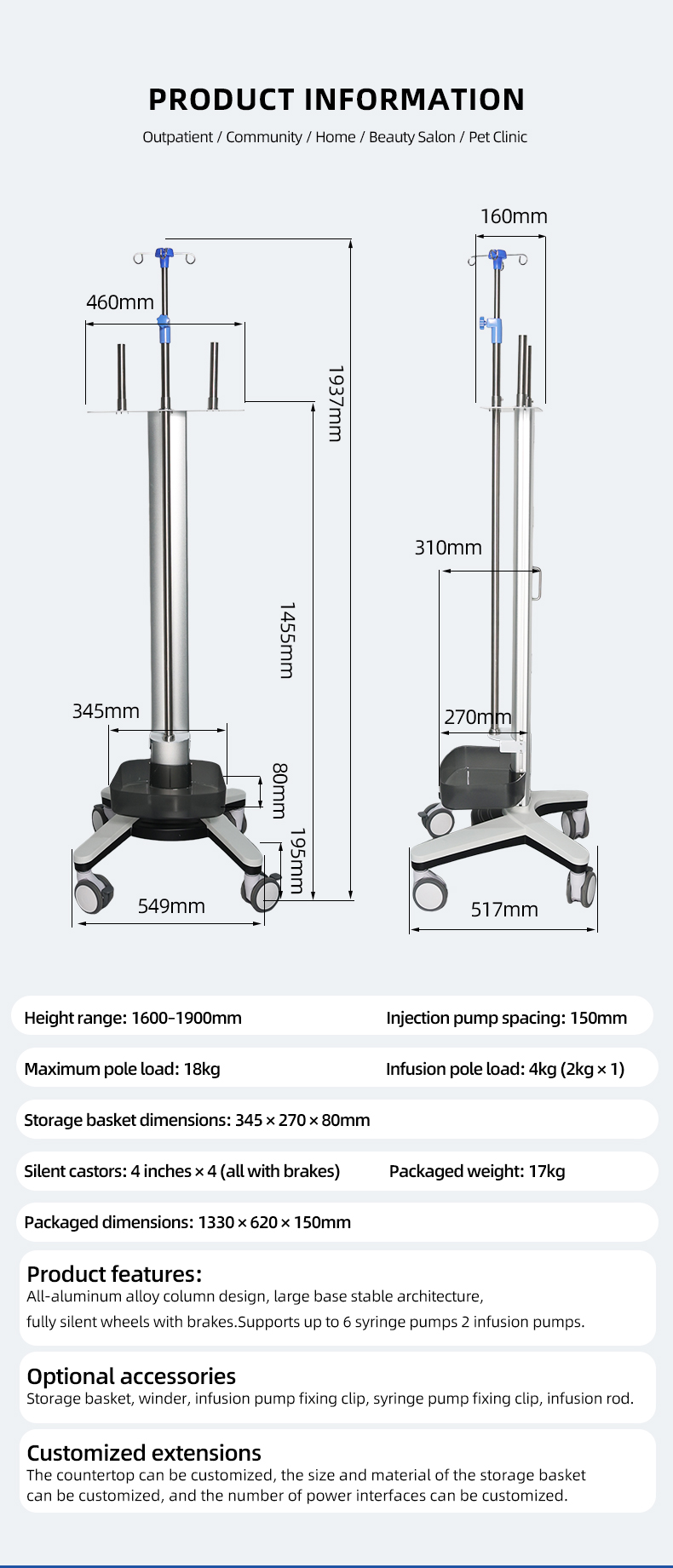

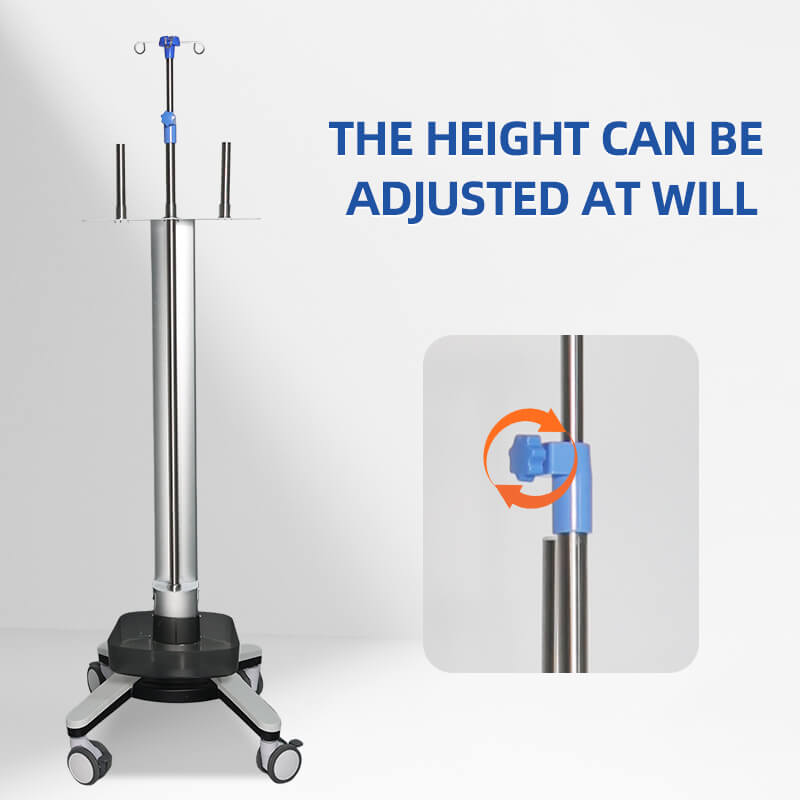

The trolley allows height adjustment within the range of 1600–1900 mm, with simple operation to accommodate different usage needs, whether seated or standing. It comes standard with a multi-hook infusion pole design, supporting up to 6 syringe pumps + 2 infusion pumps simultaneously for multi-patient synchronous treatment. The syringe pump hooks are spaced 150 mm apart for rational layout without interference.

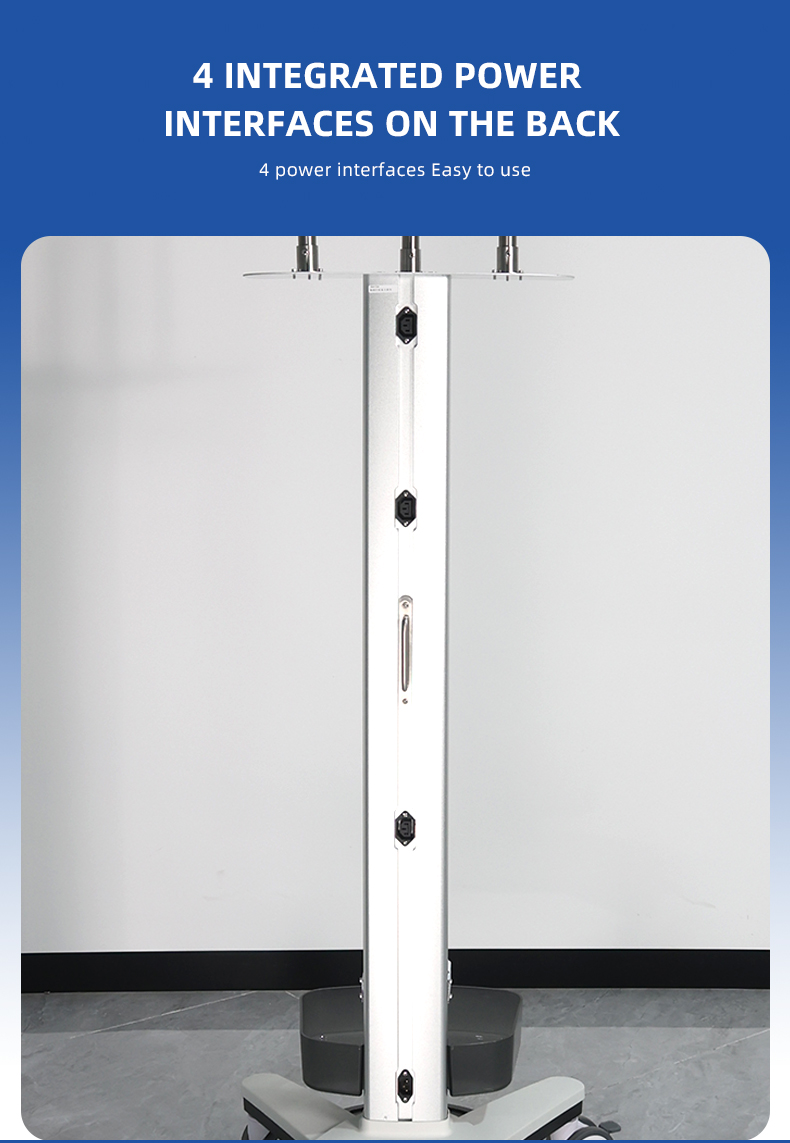

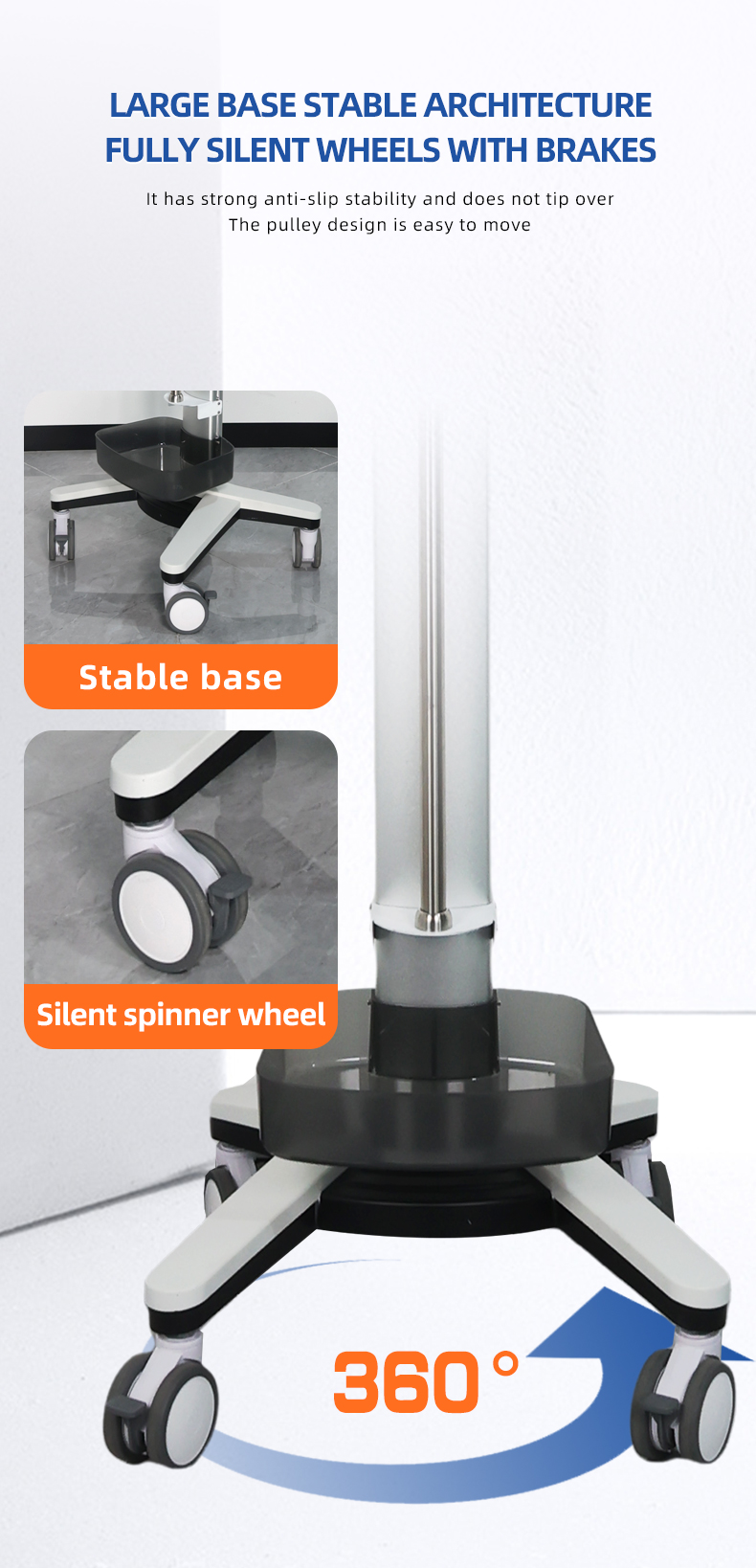

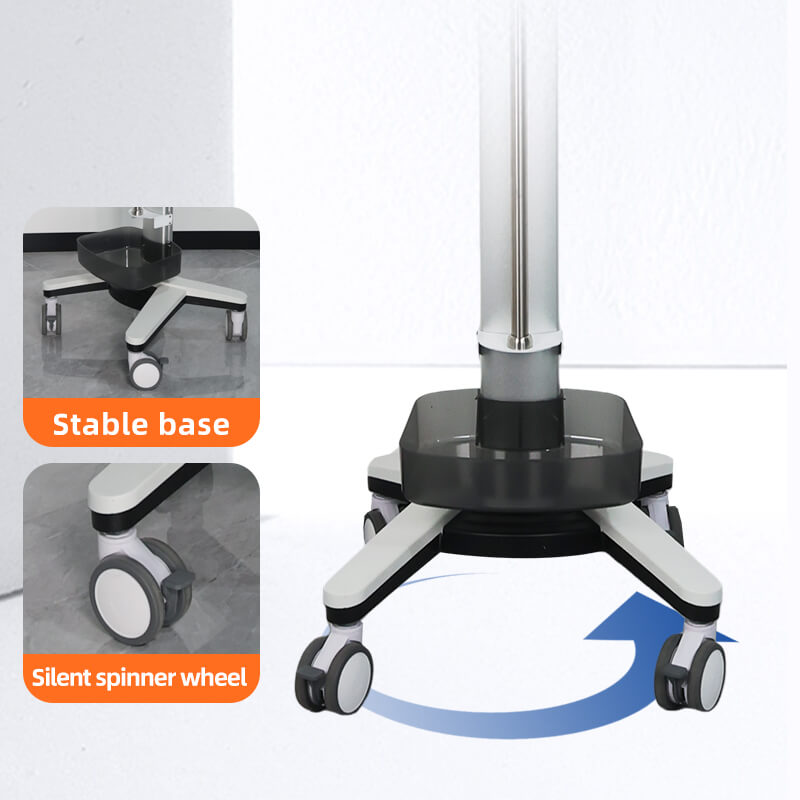

The trolley is equipped with four 4-inch fully silent swivel casters (all with brakes), providing 360° flexible steering, slip resistance, and stable mobility with secure parking. The rear side integrates 4 power interfaces (quantity customizable), offering centralized and convenient power access. The lower section includes a reinforced PC storage basket (size 345×270×80 mm, customizable), suitable for storing infusion tubes, syringes, disinfectants, and other supplies.
The MA104 supports multiple customization options, including desktop size, storage basket material and dimensions, and the number of power interfaces. Optional accessories such as storage tubes, cable organizers, various pump fixation clips, and additional infusion poles are also available, fully meeting the needs for flexibility, efficiency, and organization in clinical infusion management.
